WxS Ext-021LP

LoRaWAN Water Leakage monitoring sensor

0.00
0.00
Quantity:
Buy now
Add to cart

Product Description

LoRaWAN Water Leakage monitoring sensor


WxS Ext-021LP

LoRaWAN Water leakage monitoring sensor

Product Highlights

ü  The electrode probe design adjusts the detection height of the immersion water according to the change of the installation method.

ü  Low power consumption, long-term stability and other advantages.

ü  This product can be widely used in basements, machine rooms, warehouses, etc.

ü  Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)

ü  OTA (Over The Air) firmware upgrade, including to upgrade loader and application images

ü  Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery

ü  Optional DC 5V power source

ü  Integrated internal antenna, or optional external SMA/IPEX antenna

ü  Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments

ü  IP67 enclosure rating


Application Architecture

Specifications

Parameter

Value

Sensor

Alarm Output

switch quantity

Appearance size

65×35×12mm

Data Report

Cross-threshold report, plus periodic   report every 2 hours (the threshold and the periodic report cycle are both user-configurable)

Wireless

ISM Band

EU 863 – 870MHzUS 902 – 928MHz

China 779 – 787MHzEU 433MHz

AS 923MHzCN 470 – 510MHz

Maximum Link Budget

168dB

Distance

Up to 5km NLOS; up to 18km LOS

Antenna

Integrated internal antenna or external 1/2   wavelength whip antenna (SMA)

Mechanical

Dimension

60mm x 100mm x 35mm (WxS8800)

IP rating

IP67 (WxS8800)

Operating Temperature

-40C to +85C (WxS8800)

Cable length

0.5 meters

Total Weight

120 g

Electrical

Supply Voltage

3.6 VDC

Power Type

Replaceable 1 or 2 AA 3.6V Li-SOCI2   Battery; DC 4.5V – 12V optional

Battery Life

5 – 10 years (assume one motion event one   day)




Compliance/Certification


LoRaWAN 1.0.2



FCC(America):  2AO7W-WXS8000,

IC(Canada):  23701-WXS8000

CE(European Union)B1810246

ROHS(European Union): R2BJ180927F0664E



Installation Guide

Below diagram shows the general installation guide for WxS8800, it can be installed on any flat and solid surface, the lid is contacted with the surface and fixed via 2 self-tapping screws:

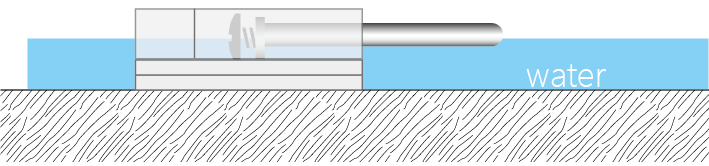

The sensor is installed horizontally to detect if there is any water on the ground.

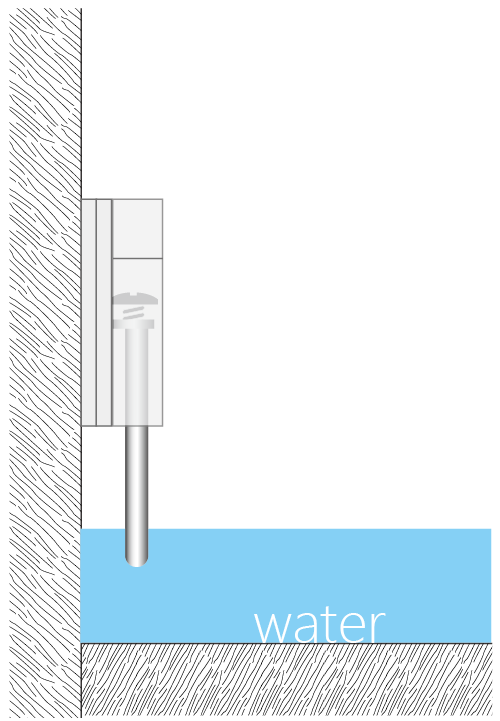

 The sensor is mounted vertically to detect or limit the water level.





Application requirements

It is very effective for detecting the water on the ground.



 Point detection and low power consumption of the sensor. It can be transferred at any time according to the change of the monitoring location.
